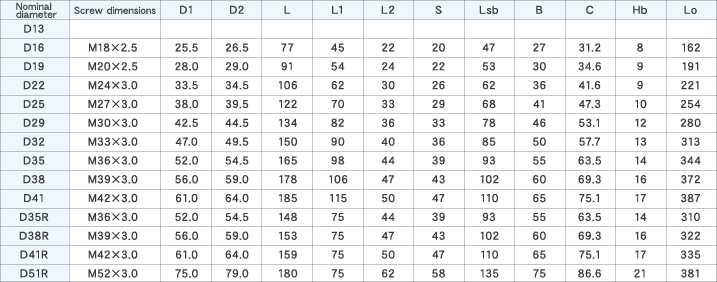

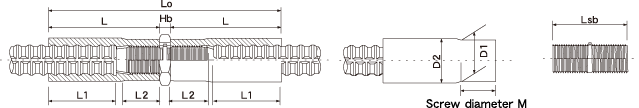

1) Note: L, L1 dimension is the minimum value, the + is not specified.
　　　　 With R of diameter, 17mm pitch to be applied to the rebar in the following referred to dock.
2) Note: The dimensions of the SD490 is the appendix.
3) Note: The dimensions are S, (M 1M: Minimum and higher) nominal diameter of the bolt.
